Product Name

AWS Code & Specification

AWS A5.20 E71T-1

Description

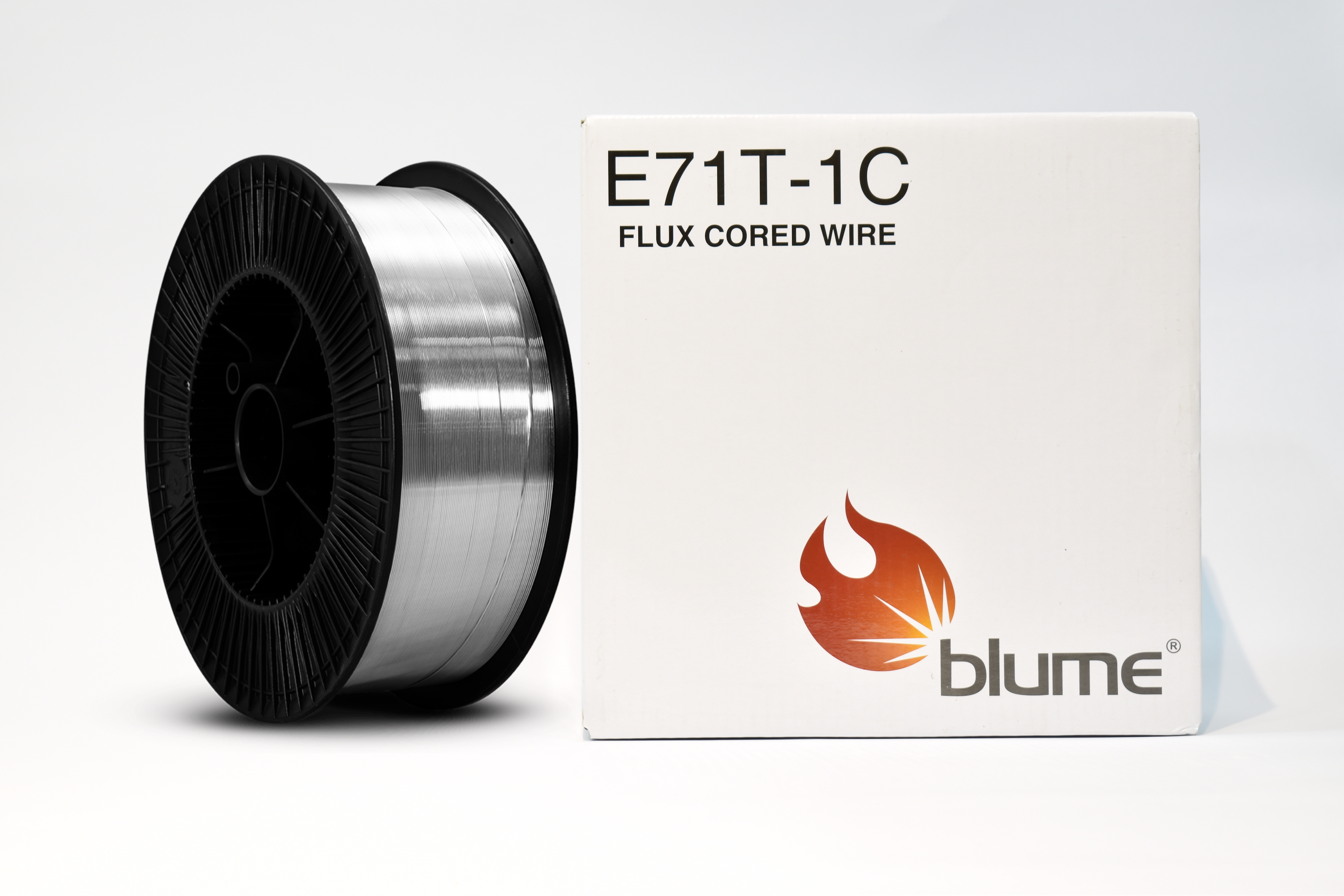

BLUME® E71T-1C is an all position flux cored wire designed for optimum performance when using 100% CO2, shielding. The smooth metal transfer facilitates easy deposition of vertical-up stringer beads. Fillet contour is flat to slightly convex with equal leg lengths and uniform sidewall wetting. The slag coverage is complete and designed for easy removal. Weld metal is consistently free of inclusions and porosity for X-ray soundness. This wire is formulated to produce 20% less fume, minimal spatter and improved impact properties over conventional E71T-1 wires.

Technical Datasheet

Product Name

AWS Code & Specification

AWS A5.22 E308LT1-1/4

Description

BLUME® E308LT1 is a stainless steel flux cored wire with all positional capabilities. Vacuum sealed in aluminised plastic packs. Formulated for CO2 or Argon +20-25% CO2 shielding gases. High deposition rate welding of stainless steel. Welds well in all positions. Excellent welder appeal. Provides a low spatter hence requiring less clean-up. Good weld soundness and extended shelf-life. Fast freezing and self detaching slag. Provides spray-like arc transfer and high moisture resistance.

Technical Datasheet

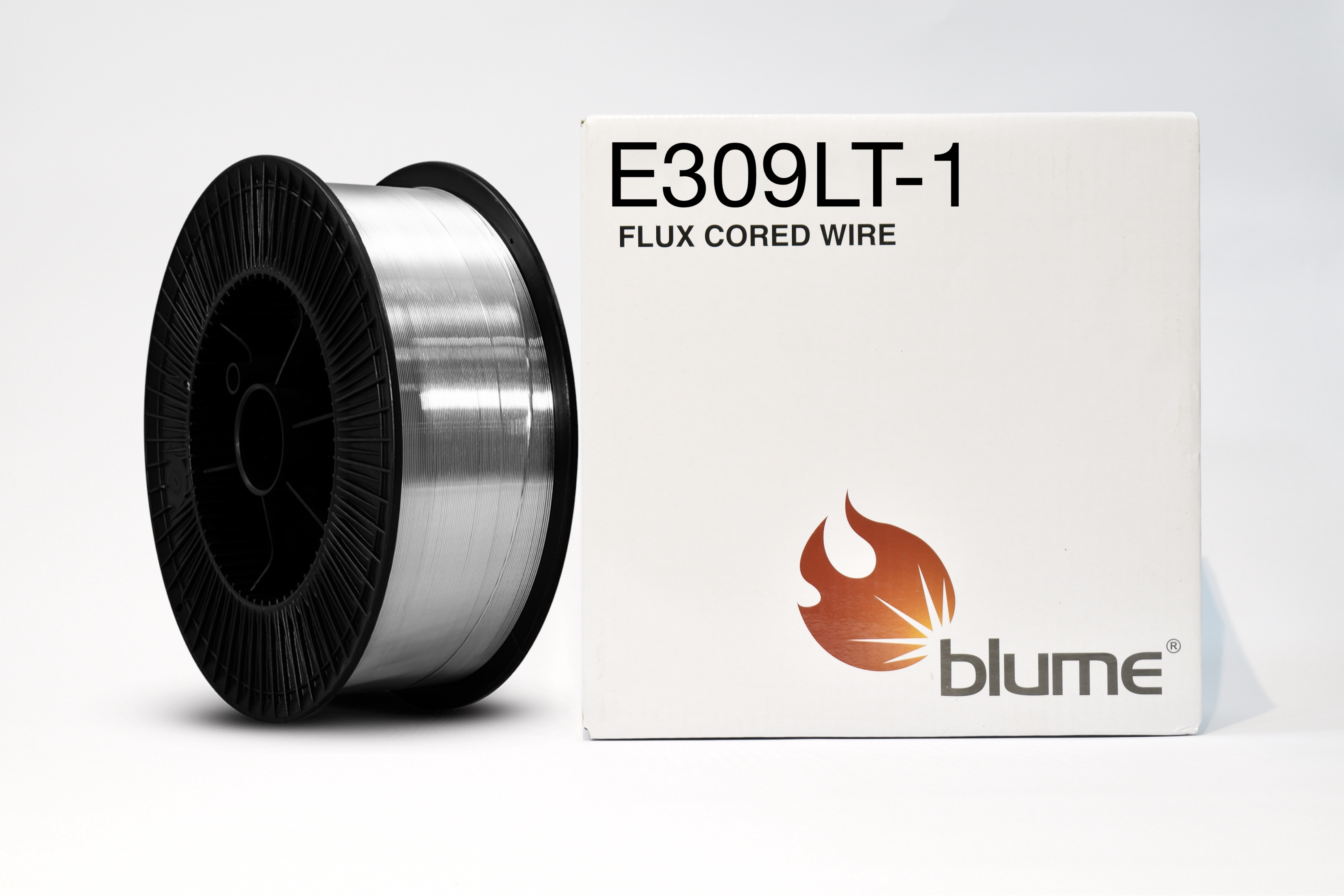

AWS A5.22 E309LT1-1/4

BLUME® E309LT1 is a stainless steel flux cored wire with all positional capabilities. Vacuum sealed in aluminised plastic packs. Formulated for CO2 or Argon +20-25% CO2 shielding gases. High deposition rate welding of stainless steel. Welds well in all positions. Excellent welder appeal. Provides a low spatter hence requiring less clean-up. Good weld soundness and extended shelf-life. Fast freezing and self detaching slag. Provides spray-like arc transfer and high moisture resistance.

Click icon to download.

AWS A5.22 E316LT1-1/4

BLUME® E316LT1 is a stainless steel flux cored wire with all positional capabilities. Vacuum sealed in aluminised plastic packs. Formulated for CO2 or Argon +20-25% CO2 shielding gases. High deposition rate welding of stainless steel. Welds well in all positions. Excellent welder appeal. Provides a low spatter hence requiring less clean-up. Good weld soundness and extended shelf-life. Fast freezing and self detaching slag. Provides spray-like arc transfer and high moisture resistance.

AWS A5.22 E410NiMoT1-1

BLUME® E410NiMo is a gas shield type hard-facing flux cored arc welding wire. This hard-facing flux cored wire obtains a martensite structure weld metal. BLUME® E410NiMo has a good crack resistance, high compressive abrasion resistance and good thermal fatigue resistance.

Product Name

AWS Code & Specification

Description

BLUME® HF44CrMnNi is a 13% Chromium Nitrogen containing martensitic stainless steel submerged arc flux cored wire. The complete martensitic microstructure provides excellent tempering stability, wear resistance, excellent heat resistant fatigue and stress corrosion cracking ability.

Technical Datasheet

BLUME® HF44CrMnNi-OA is a 13% Chromium Nitrogen containing martensitic stainless steel self shielded flux cored wire. The complete martensitic microstructure provides excellent tempering stability, wear resistance, excellent heat resistant fatigue and stress corrosion cracking ability.

BLUME® HF50MnCr is a common chromium molybdenum type flux cored wire with CO2 gas protection. The welding arc is stable, the splatter is small, the deslagging is easy and the forming is aesthetic. It is suitable for the workpiece with impact resistance and high wear and tear.

BLUME® HF62Cr is a high Chromium Cast Iron, which is suitable for low impact and high stress abrasive wear conditions. BLUME® HF62Cr is suitable for wear-resistant steel plate, coal mill, cement vertical mill, etc.

BLUME® HF65CrNb is a self shielded flux cored wire, and the deposited metal is Cr-Nb alloy. When the working temperature is less than 450oC, it has good resistance to low impact and high stress solid abrasive wear, and the surfacing metal is easy to release stress cracks.

BLUME® HFCr13 is a Hardfacing wire with subarc flux. BLUME® HFCr13 is suitable for continuous casting roll, valve seat, mixer impeller, centrifugal pump impeller and other parts in iron and steel industry, suitable for metal key corrosion and wear occasions.

BLUME® HFCrMoW is a submerged arc flux cored wire. Suitable for wear between metals and low pressure and high temperature. BLUME® HFCrMoW is used in steel industry, such as billet roll, pinch roll, cable winch, rock drill, blast furnace bell, etc.

BLUME® HFMn16 is a CO2 gas shielded high manganese type flux cored welding wire. The welding wire has the characteristics of working hardening, toughness and wear resistance. The welding arc is stable and easy to deslag.

Product Name

AWS Code & Specification

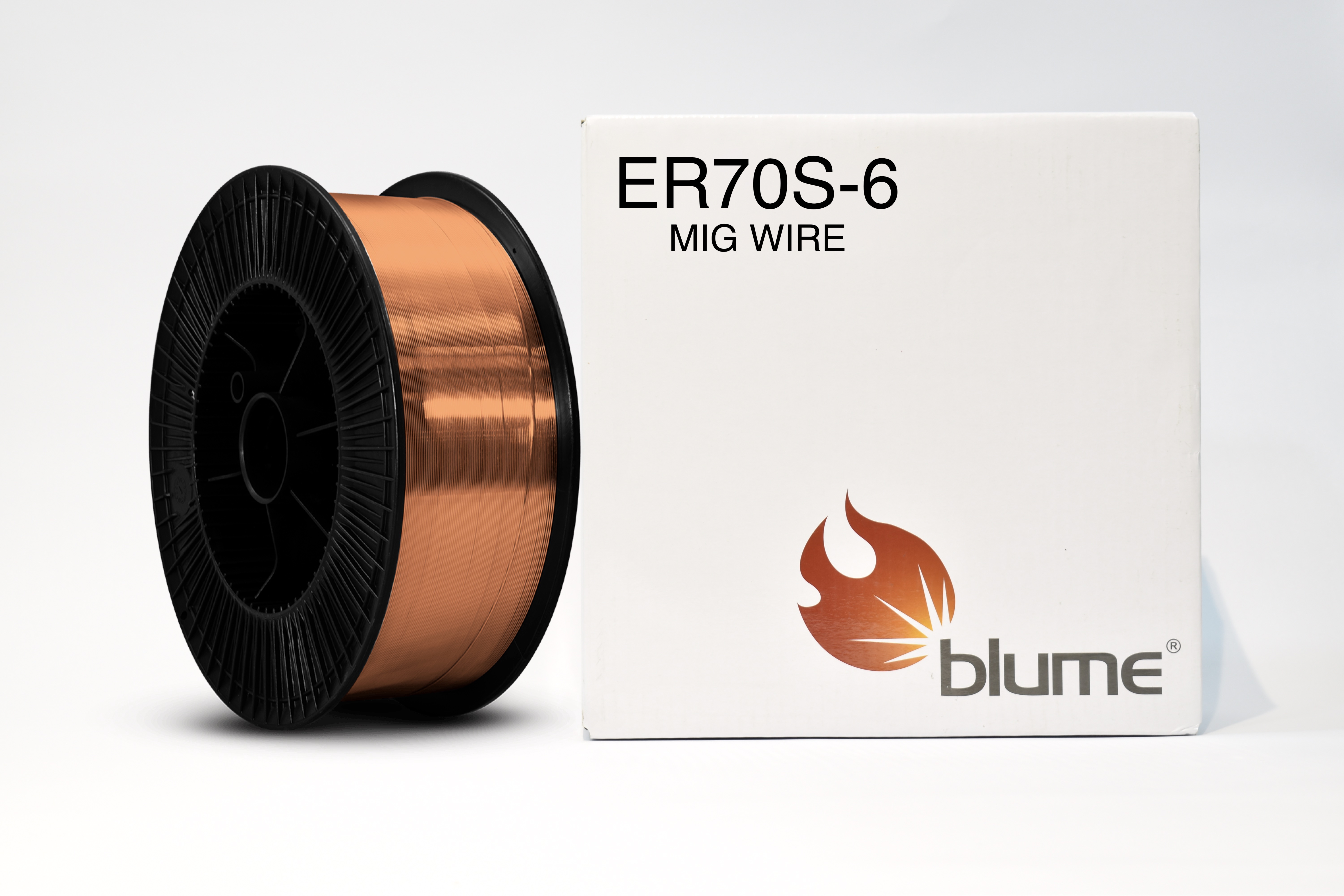

AWS A5.18 ER70S-6

Description

BLUME® ER70S-6 is a general purpose welding wire for fabrication of mild steel . It is well suited for general purpose, manual and semiautomatic applications in most industries. Contains deoxidizers that provide better wetting, yielding a flatter bead shape and the capability of faster travel speeds . Usually used with 100% CO2 or with Argon + CO2.

Technical Datasheet

Product Name

AWS Code & Specification

A.I.S.I H13

Description

BLUME® HFH13 is for hot work tool steels with excellent hot tensile properties, high hot wear resistance. Heat checking resistance. BLUME® HFH13 is used in particular to repair mandrels, punches, dies, cylinder crushers, screws, hammers, pneumatic hammers, etc.

Technical Datasheet

A.I.S.I M2

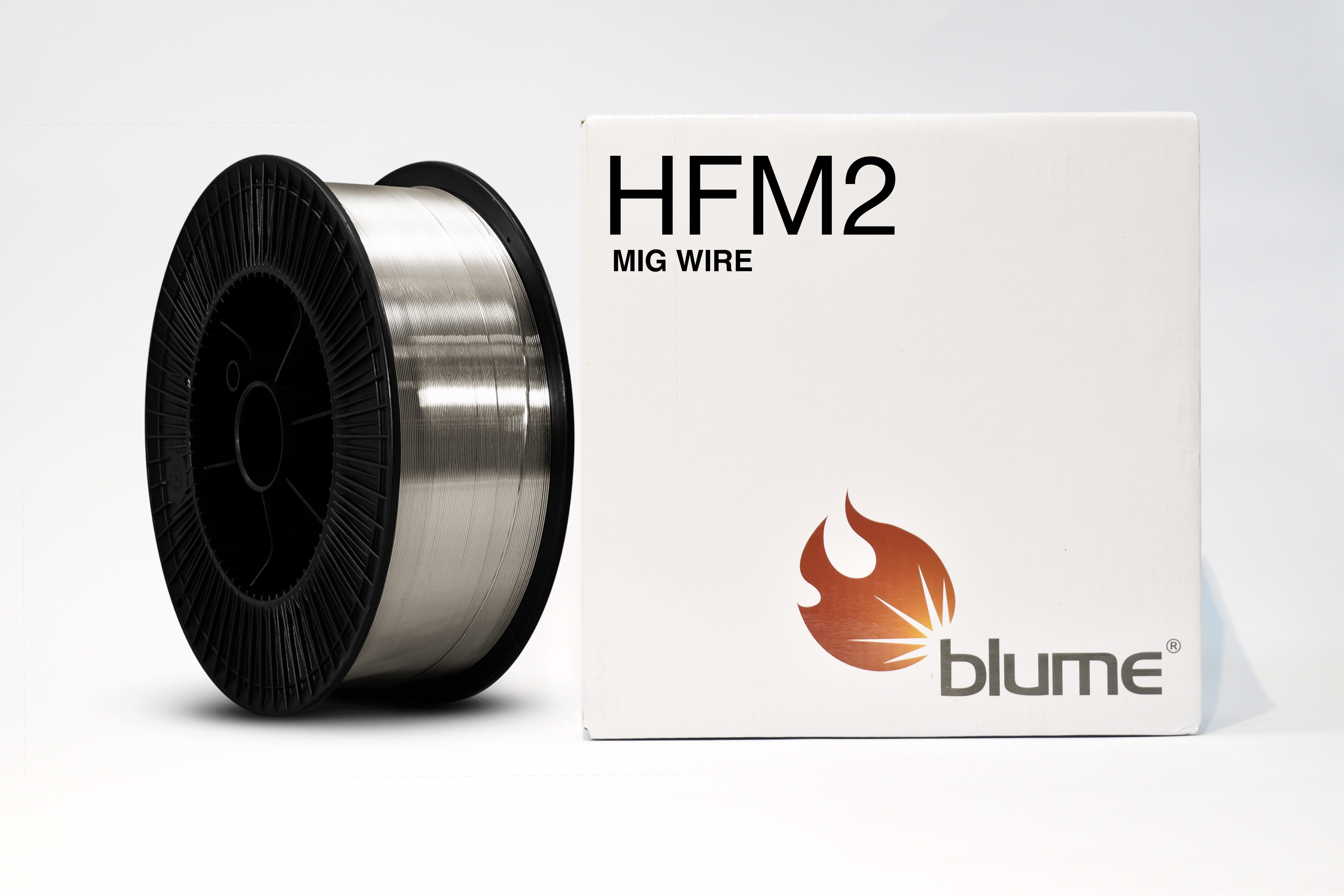

BLUME® HFM2 is a Tungsten - Molybdenum alloyed welding wire suitable for repairing high speed steels. Excellent toughness and cutting properties for a wide variety of uses. BLUME® HFM2 is used for twist drills, reamers, broaching tools, metal saws, milling tools of all types, wood working tools, cold working tools, gears, punches, shears etc.

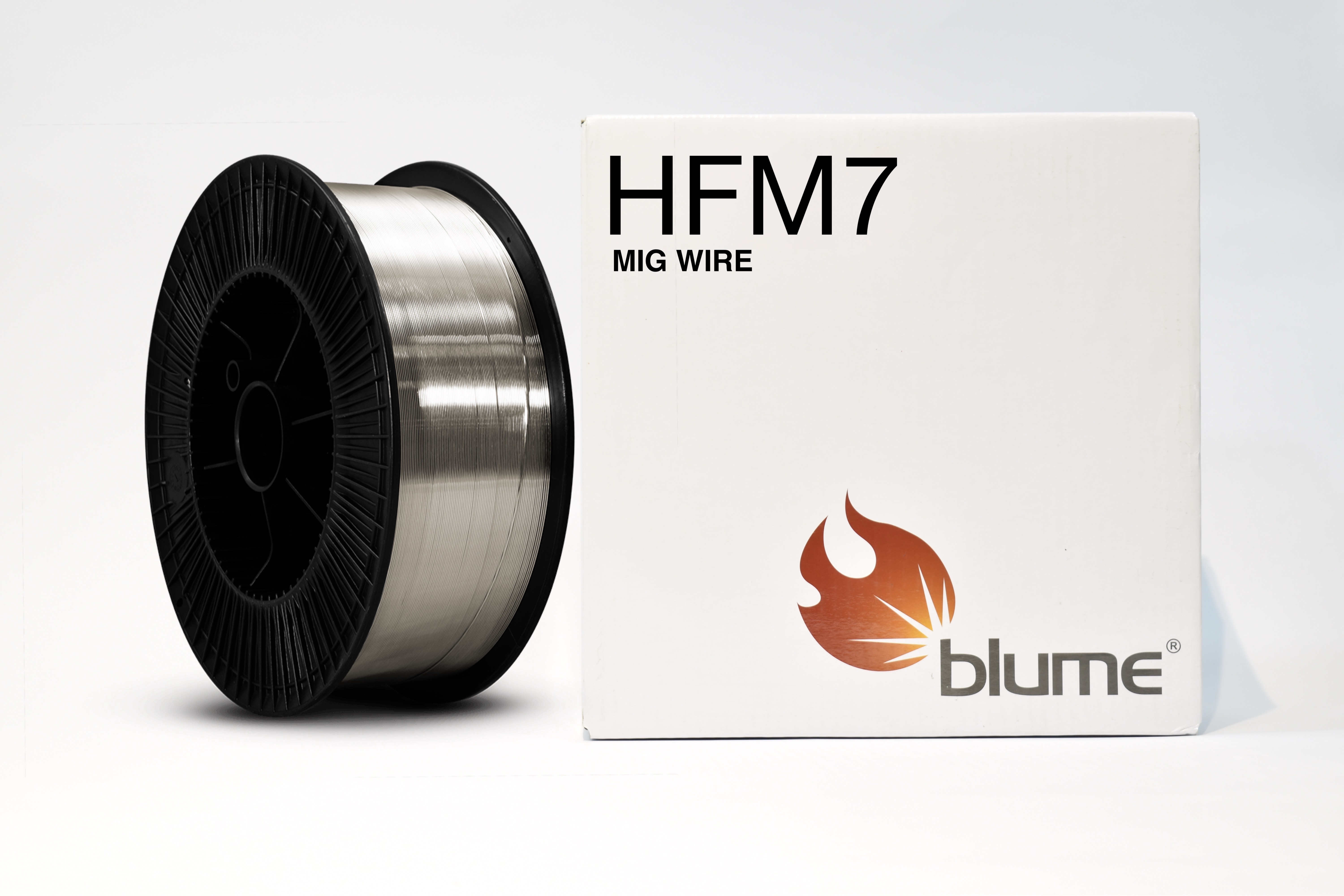

A.I.S.I M7

BLUME® HFM7 is a molybdenum high speed tool steel solid wire similar to AISI M7 grade. This product characterised by a high hardness (57 to 64 HRC) and excellent wear resistance. It is suitable for use at elevated temperatures.

A.I.S.I P-20 Mold Steel

BLUME® HFP20 is a medium carbon low alloy steel which contains chromium and molybdenum. The Deposits are that of an AISI P-20 mold steel. The hardness is highly dependent on preheat temperature, length of time welding, and cooling rate. The deposits have similar etching, graining and colour match characteristics as P-20 when tempered to the low 30 HRC range.

Product Name

AWS Code & Specification

AWS A5.1 E6013

Description

BLUME® E6013 is a mild steel stick electrode. Operable with low amperages on sheet metal. Excellent bead appearance. BLUME® E6013 is used for welding of sheet metal and for irregular short welds that change position. Typically used for maintenance or repair welding. Can be used on small AC Welders with low open circuit voltage.

Technical Datasheet

AWS A5.1 E7018-1

BLUME® E7018 is a mild steel stick electrode. Clear weld puddle without slag interference. Flat bead profile. BLUME® E7018 is used in several industries such as power generation, petrochemical, pressure vessels and pressure piping. Typically used for mild steel welding.

Product Name

AWS Code & Specification

AWS A5.4 E308L-16

Description

BLUME® E308L-16 is a stainless steel stick electrode. Flux coating provides a smooth arc transfer for all welding positions. Used to weld austenitic steels. Designed with low carbon levels to help eliminate carbide precipitation in high temperature service.

Technical Datasheet

AWS A5.4 E316L-16

BLUME® E316L-16 is a stainless steel stick electrode. Flux coating provides a smooth arc transfer for all welding positions. Molybdenum grade for increased corrosion resistance. Delivers exceptional puddle control, a smooth arc, and excellent slag release.

Product Name

AWS Code & Specification

AWS A5.15 E NiCu-7

Description

BLUME® E NiCu-7 is a Monel electrode for joining and surfacing of nickel copper alloys. Low iron deposit exhibit maximum corrosion resistance. Medium penetration weld. Easily machinable deposit in as welded and stress relieved condition. Passes 180o bend test on monel alloy 400 plate.

Technical Datasheet

AWS A5.15 E NiCu-B

BLUME® E NiCu-B is a monel alloy electrode with graphite based coating. Machinable weld is achieved with this electrode. Minimum dilution ensures shallow but sufficient depth of fusion. No preheating required for use.

AWS A5.15 E NiFe-Cl

BLUME® E NiFe-Cl is a Ni-Fe type machinable electrode for Repair and Welding of Cast Iron. Produces dense, soft and ductile weld with adequate strength. Provides porosity are welding. Controlled dilution and penetration. Does not require preheating for large heavy casting.

Product Name

AWS Code & Specification

A.I.S.I H13

Description

BLUME® HFH13 is for hot work tool steels with excellent hot tensile properties, high hot wear resistance. Heat checking resistance. BLUME® HFH13 is used in particular to repair mandrels, punches, dies, cylinder crushers, screws, hammers, pneumatic hammers, etc.

Technical Datasheet

A.I.S.I M2

BLUME® HFM2 is a Tungsten - Molibedenum alloyed welding wire suitable for repairing high speed steels. Excellent toughness and cutting properties for a wide variety of uses. BLUME® HFM2 is used for twist drills, reamers, broaching tools, metal saws, milling tools of all types, wood working tools, cold working tools, gears, punches, shears etc.

A.I.S.I M7

BLUME® HFM7 is a molybdenum high speed tool steel solid wire similar to AISI M7 grade. This product characterised by a high hardness (57 to 64 HRC) and excellent wear resistance. It is suitable for use at elevated temperatures.

A.I.S.I P-20

BLUME® HFP20 is a medium carbon low alloy steel which contains chromium and molybdenum. The Deposits are that of an AISI P-20 mold steel. The hardness is highly dependent on preheat temperature, length of time welding, and cooling rate. The deposits have similar etching, graining and colour match characteristics as P-20 when tempered to the low 30 HRC range.
